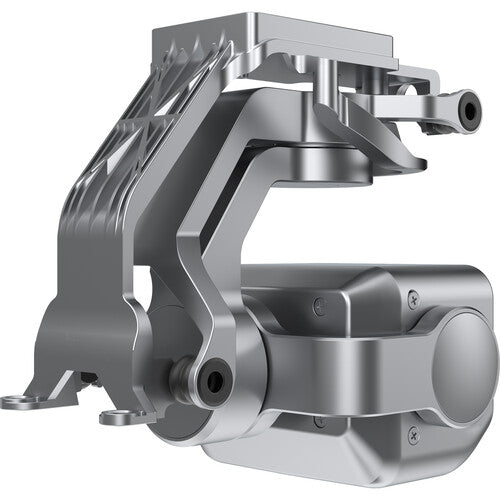

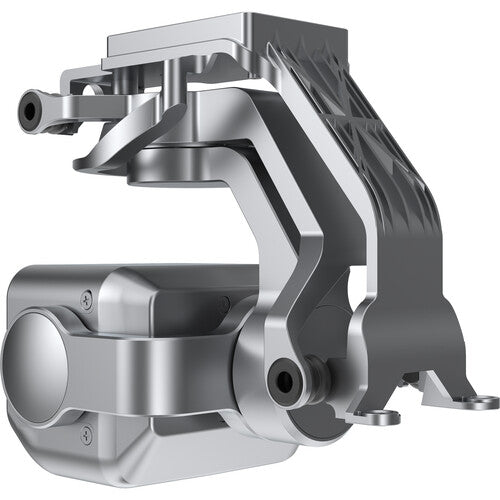

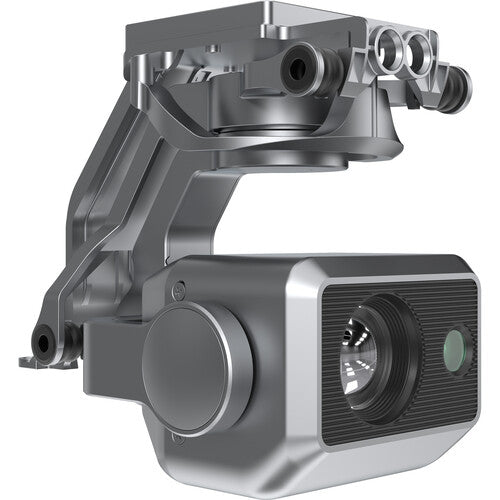

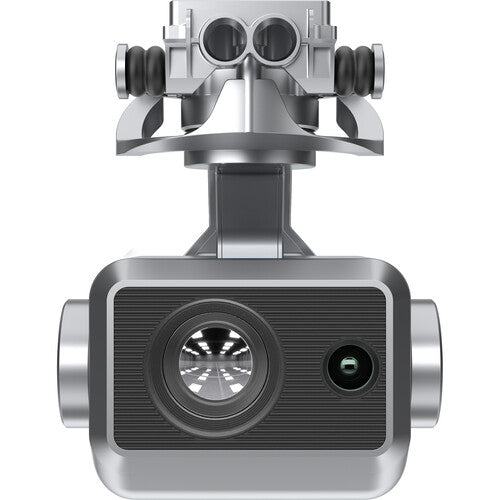

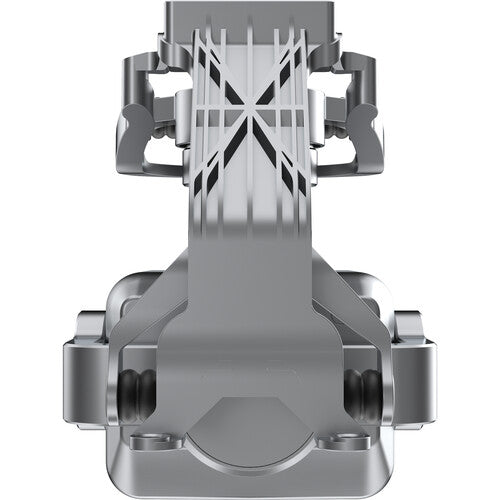

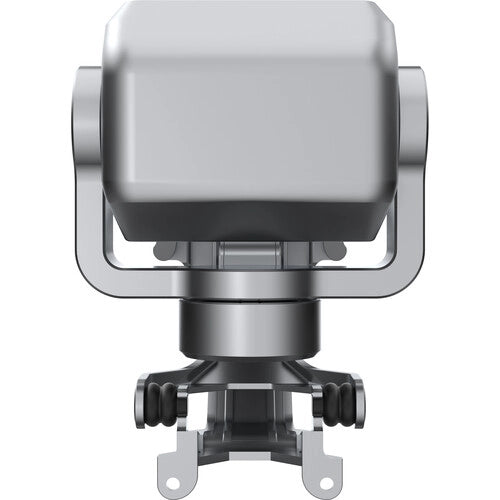

Autel Robotics EVO II 640T Gimbal Camera Thermal and Visual

$12,000.00 $5,600.00

Shipping calculated at checkout.

Autel Robotics EVO II 640T Thermal Overview Two cameras in one, the Autel Robotics EVO II 640T Thermal and Visual Gimbal Camera gives your EVO II a 640 x 512 thermal sensor with 328'...

Out of stock
Vendor: Autel StoreSKU: N/AAvailability : In StockIn StockOut of stockCategories: Autel EVO II SeriesTags: 640T Gimbal Camera, Autel 640T Gimbal, Autel 640T Gimbal Camera

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverdiners club

Autel Robotics EVO II 640T Thermal Overview

Two cameras in one, the Autel Robotics EVO II 640T Thermal and Visual Gimbal Camera gives your EVO II a 640 x 512 thermal sensor with 328' range, and a 48MP 1/2" CMOS visual sensor. The visual sensor is capable of capturing stunning aerial images at resolutions up to 8000 x 6000, and videos at up to 8K resolution. The thermal sensor has a low and high gain setting for reading temperatures from -4 to 1022°F.

The combination can take advantage of 8x optical zoom and be used together in a picture-in-picture mode, letting you see real footage and thermal footage simultaneously. This is an ideal gimbal for obtaining detailed images and video, and for performing specialized operations such as industrial inspections, security enforcement, and search and rescue.

Thermal Camera Features

  • Ten thermal color palettes, isotherms, and image enhancement
  • Works with Autel's Infrared Thermal Analysis Tool (IRPC TOOL)
  • Uncooled Vox Microbolometer infrared sensor
  • 13mm focal length
  • MOV and MP4 video format support in H.264 or H.265 codecs

Visual Camera Features

  • Still photography modes: Single shot, burst, 3/5, autoexposure bracketing (AEB), and time-lapse 3/5
  • Up to 8000 x 6000 resolution at 4:3 aspect ratio
  • Up to 7680 x 4320 resolution at 16:9 aspect ratio
  • MOV and MP4 video format support in MPEG-4 AVC/H.264 or HEVC/H.265 codecs
  • Supports video shooting at 1080p, 2.7K, 4K, 6K, and 8K
  • Maximum bit rate of 120 Mb/s
Thermal Camera
Sensor Resolution 640 x 512
Pixel Pitch 12 ╬╝m
Wavelength Range 8 to 14 ╬╝m
Focal Length 13mm
FOV 33┬░ H
26┬░ V
Zoom 1 to 8x
Resolution Infrared: 640 x 512
Picture-in-Picture: 1920 x 1080, 1280 x 720
Video: 640 x 512 at 30 fps
Video Format MOV/MP4 (H.264/H.265)
Temperature Measuring Accuracy ┬▒6┬░ / 3┬░ or ┬▒3% of Reading (Whichever is Greater) at Ambient Temperature 68 to 140┬░F / 20 to 60┬░C
Temperature Range High-Gain Mode: -4 to 302┬░F / -20 to 150┬░C
Low-Gain Mode: 32 to 1022┬░F / 0 to 550┬░C
Temperature Measuring Range 6.6 to 65.6' / 2 to 20 m
Camera
Sensor 1/2" CMOS
48 MP
79┬░
Lens EFL: 25.6mm
Aperture: f/2.8 to f/11
Focus Distance: 1.6' / 0.5 m to Any Distance (with Autofocus Mode)
ISO Range Video: 100 to 6400 (Auto)
Photo: 100 to 3200 (Auto)
Zoom 1-8x (Max 4x Lossless)
Still Image Resolution 8000 x 6000 (4:3)
7680 x 4320 (16:9)
4000 x 3000 (4:3)
3840 x 2160 (16:9)
Video Resolution 8K: 7680 x 4320p at 24/25 fps
6K: 5760 x 3240p at 24/25/30 fps
4K: 3840 x 2160p at 24/25/30/48/50/60 fps
2.7K: 2720 x 1528p at 24/25/30/48/50/60/120 fps
Full HD: 1920 x 1080p at 24/25/30/48/50/60/120 fps
Video Format MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Maximum Bit Rate 120 Mb/s
Packaging Info
Package Weight 0.99 lb
Box Dimensions (LxWxH) 6.2 x 5.8 x 3.2"
