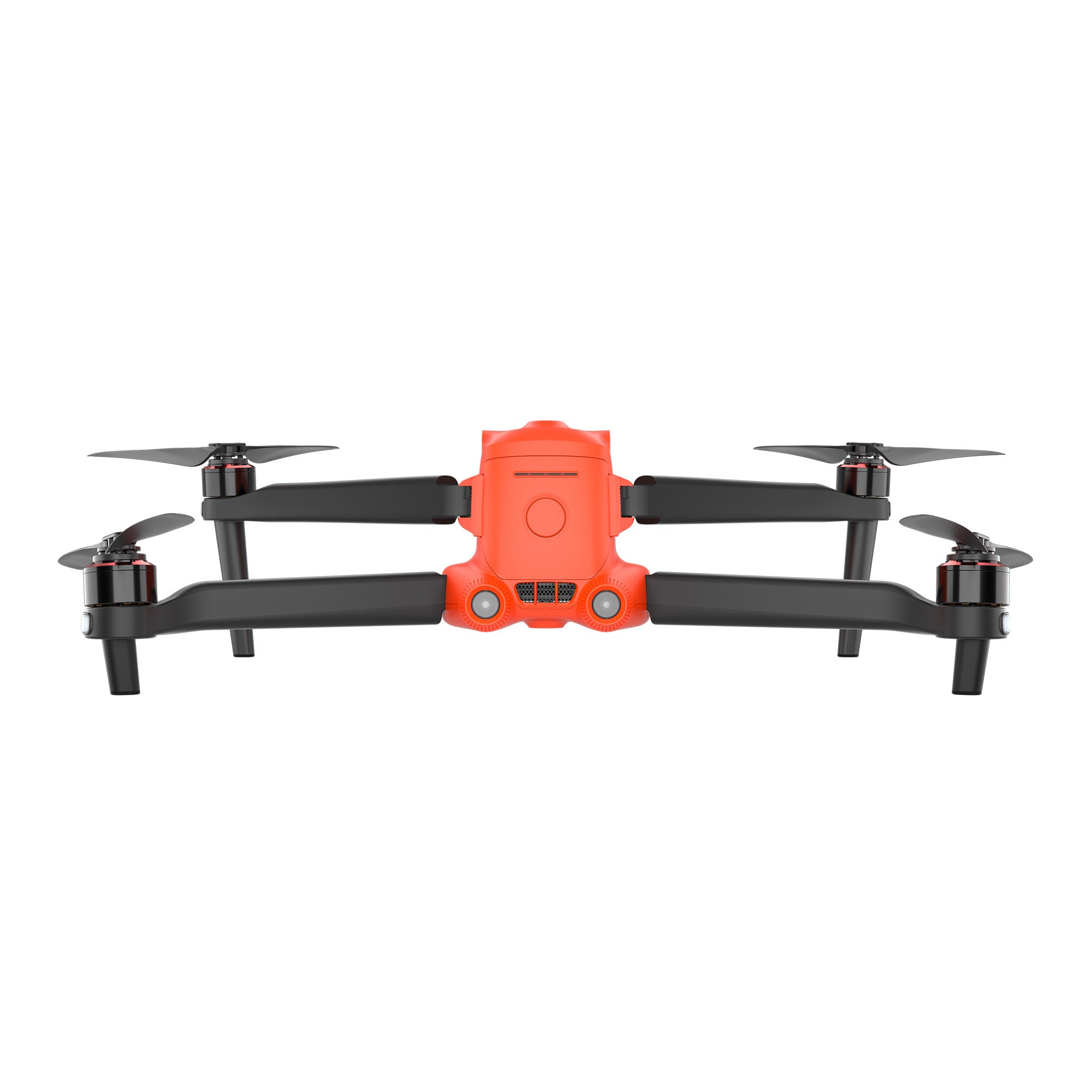

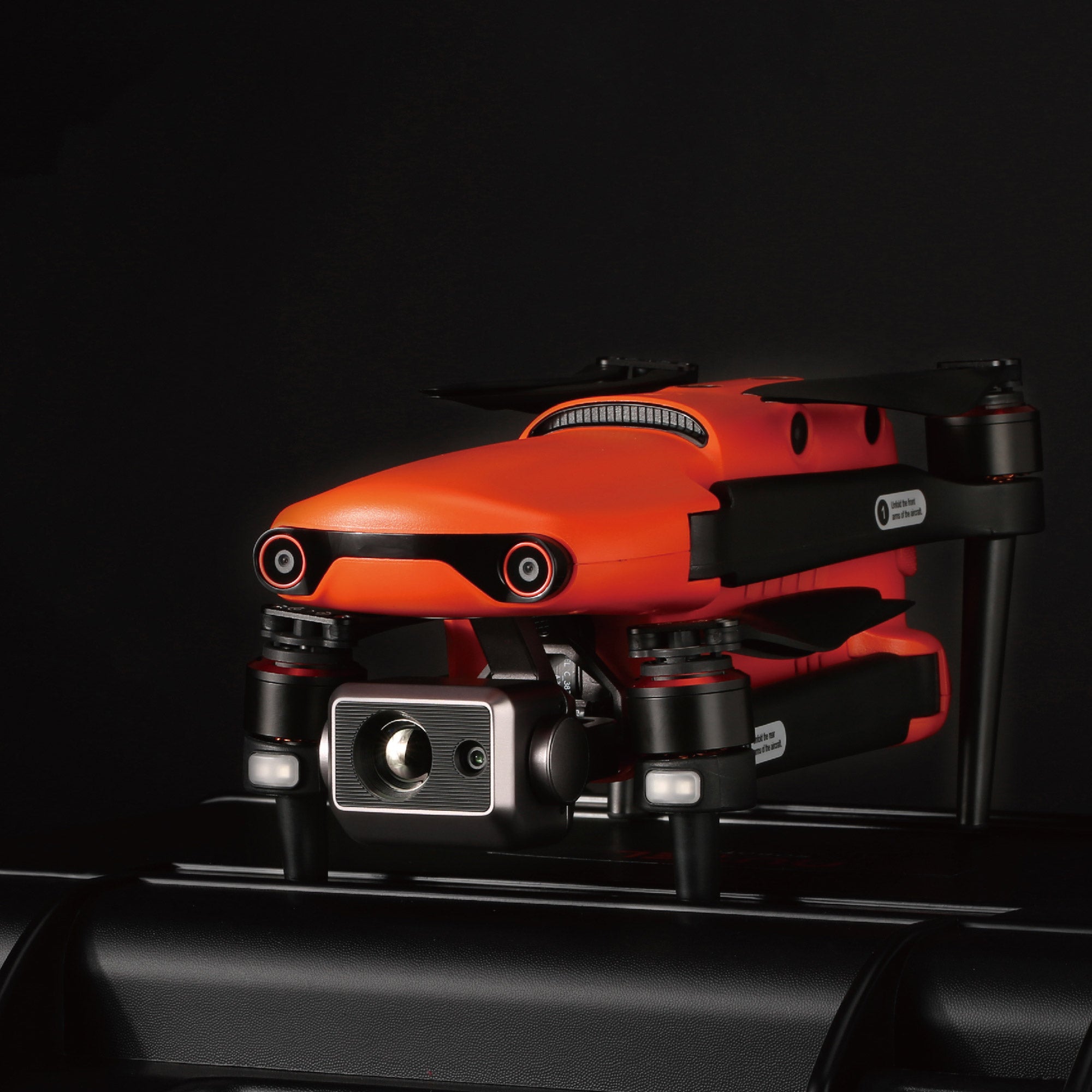

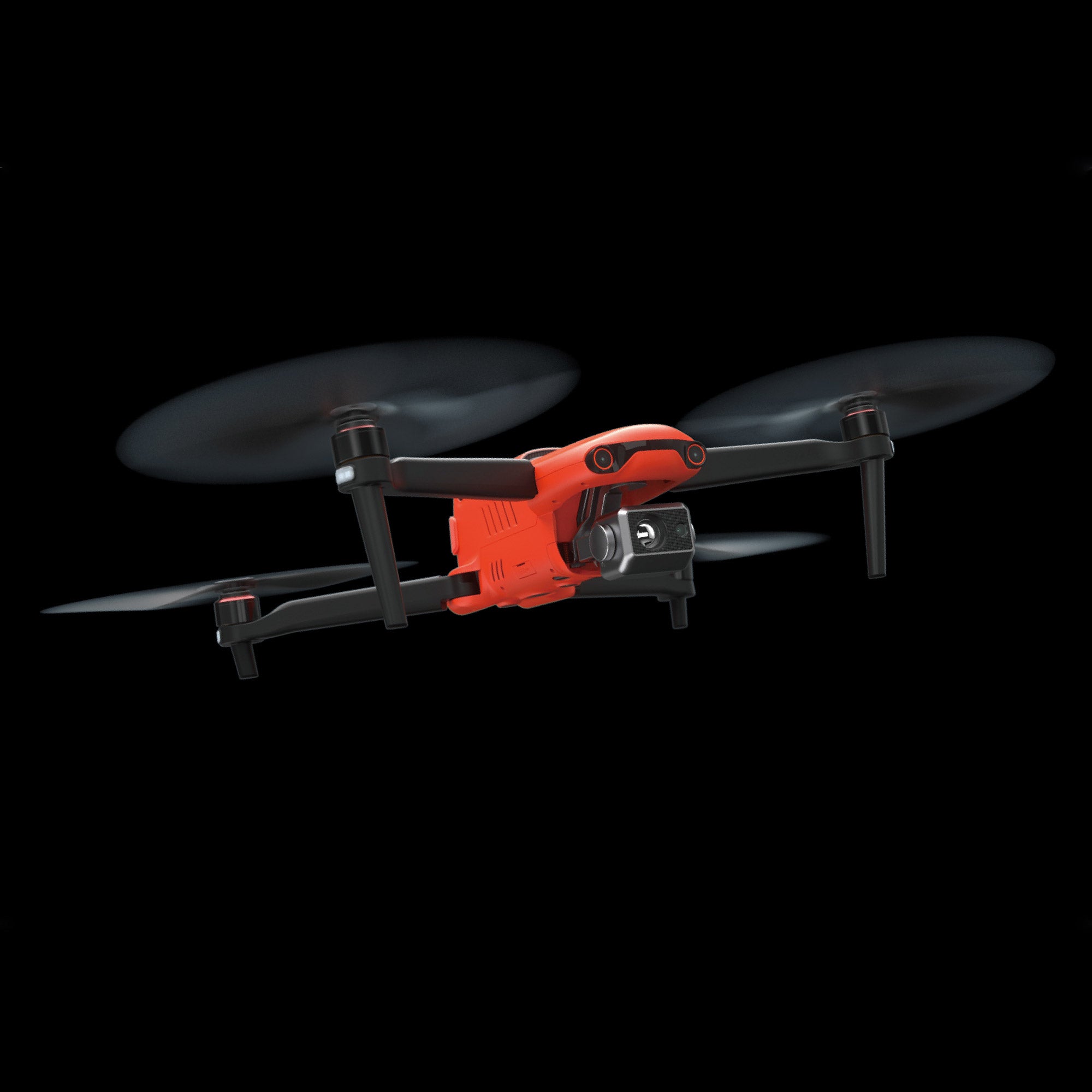

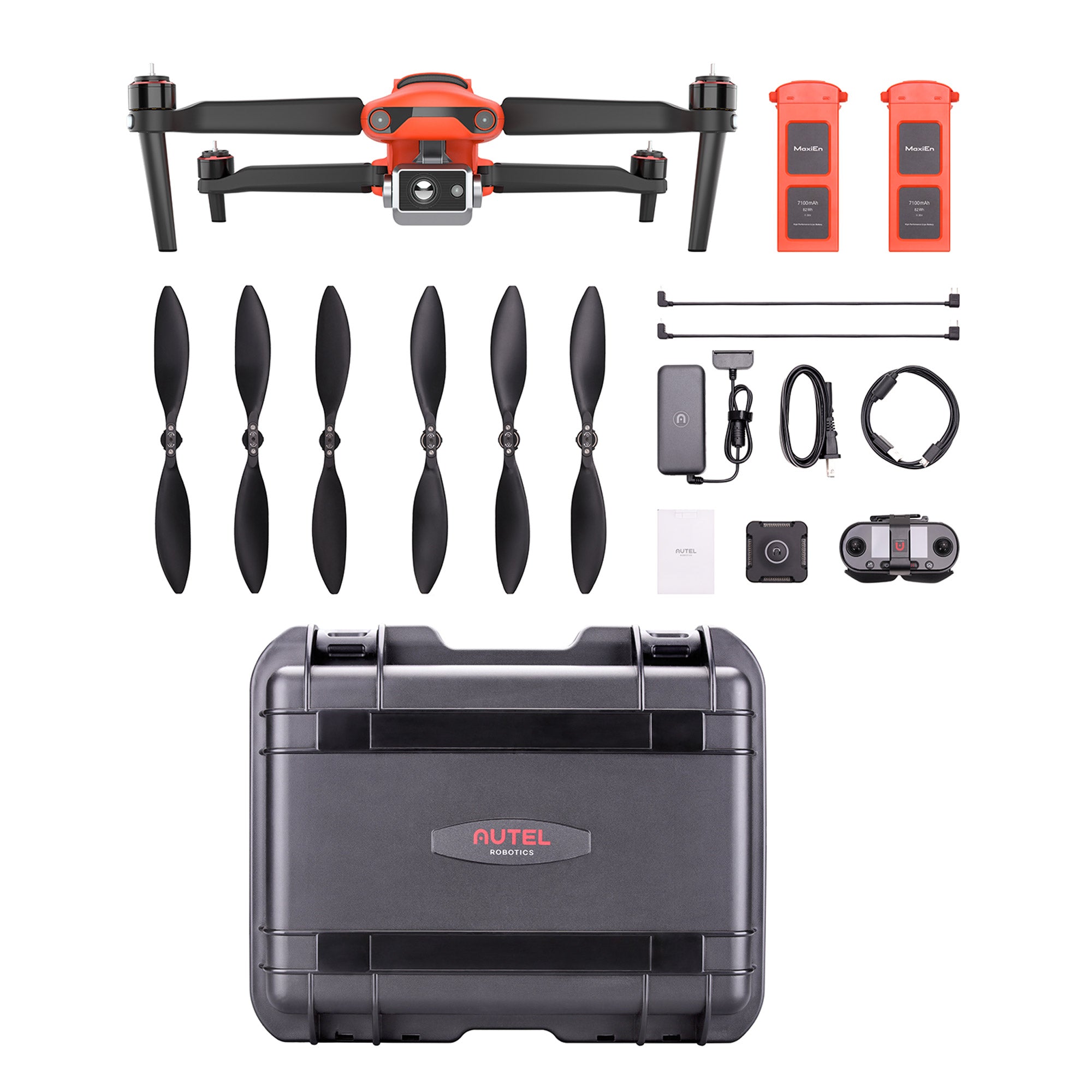

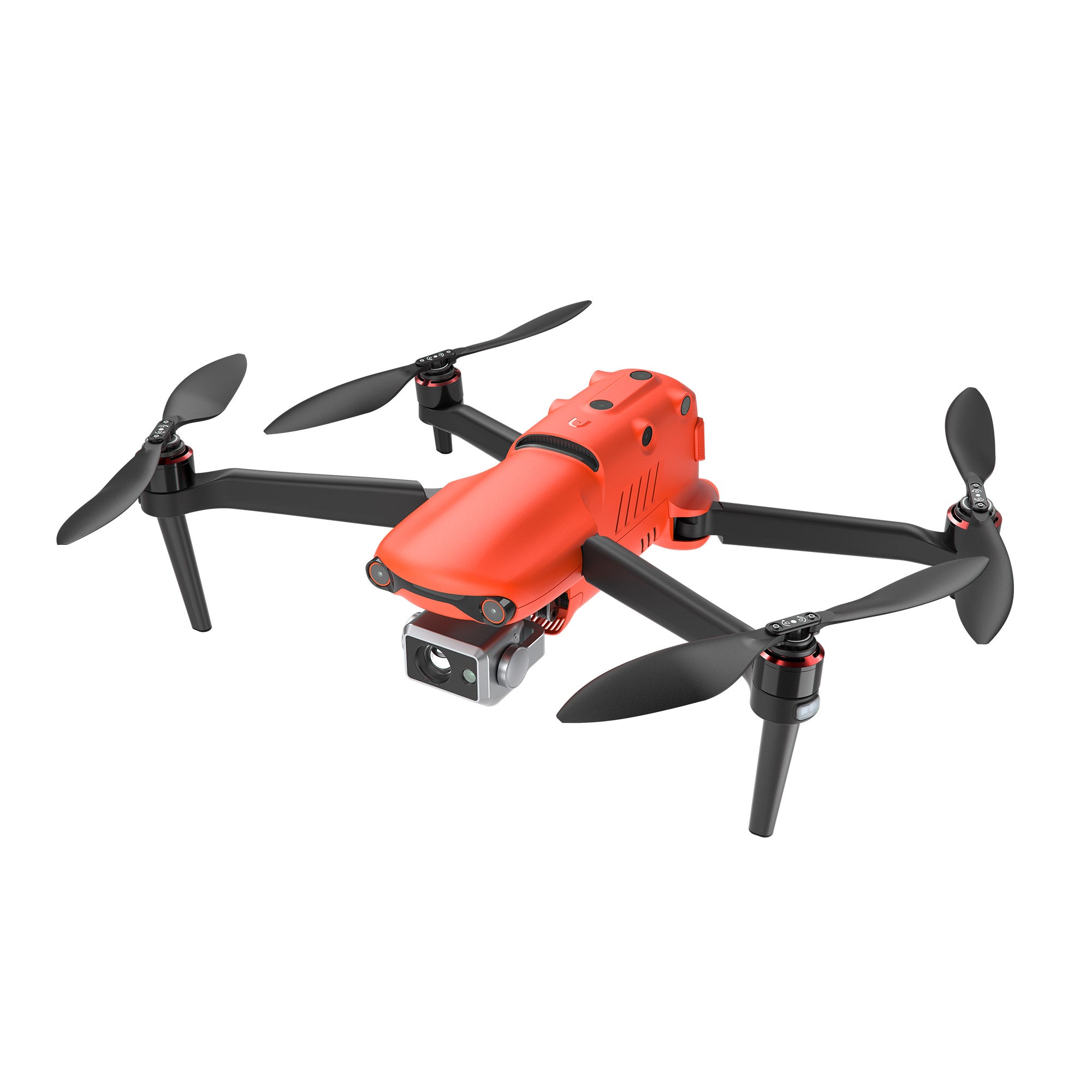

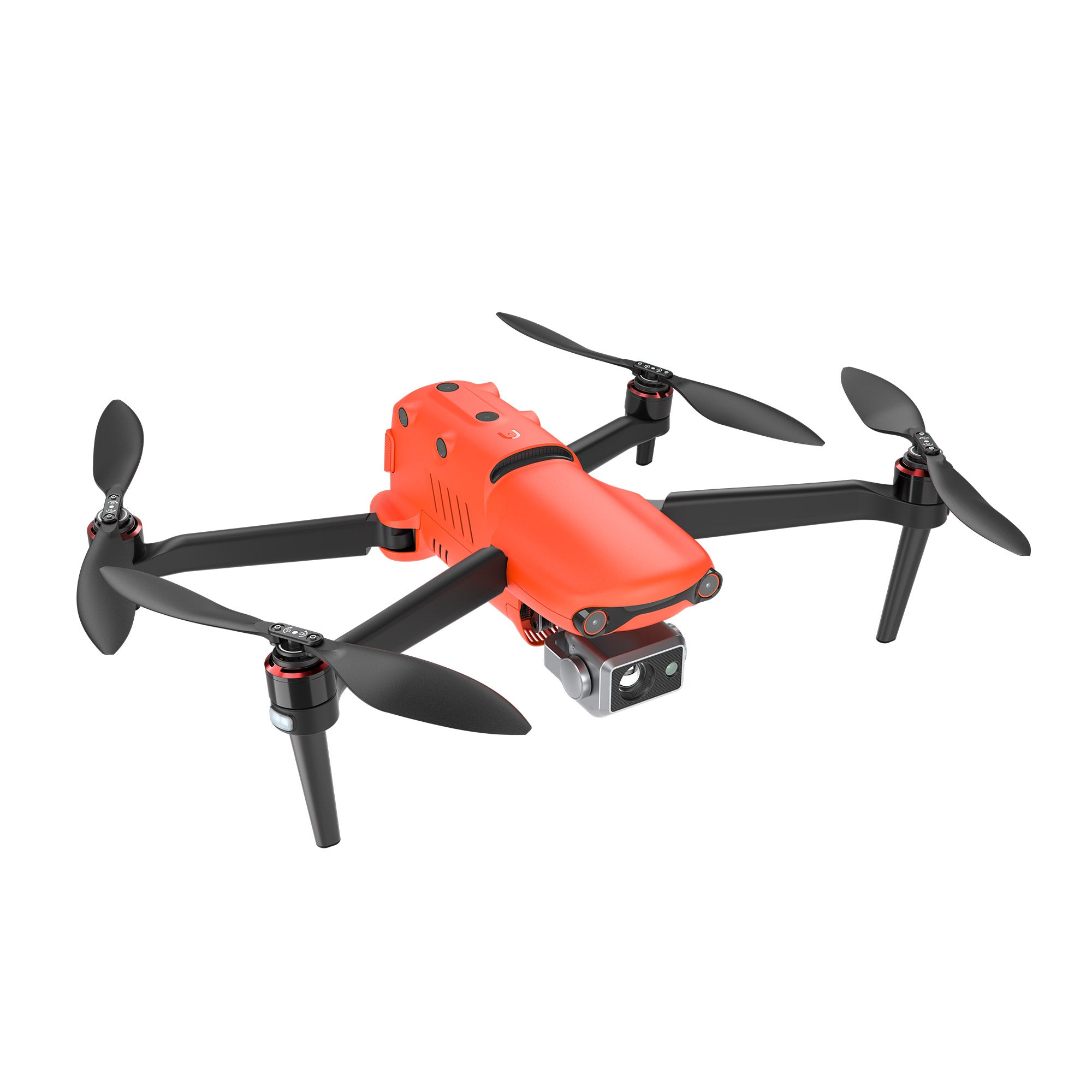

Autel Robotics EVO II Dual Rugged Bundle V2 (640T) 30hz

$12,000.00 $4,889.00

Shipping calculated at checkout.

Atuel Robotics EVO II Dual 640T is equipped with a 640*512 high-resolution thermal imaging camera and 8K ultra HD visible light camera, enabling you to capture highly detailed imagery to achieve...

Out of stock
Vendor: Autel StoreSKU: N/AAvailability : In StockIn StockOut of stockCategories: Autel EVO II SeriesTags: Autel 640T, autel evo 2 640t, Autel EVO 2 Dual 640t, Autel EVO II 640T, Autel EVO II Dual 640T

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverdiners club

Atuel Robotics EVO II Dual 640T is equipped with a 640*512 high-resolution thermal imaging camera and 8K ultra HD visible light camera, enabling you to capture highly detailed imagery to achieve optimal insights.

In addition to the Dual camera, the autel robotics evo ii dual 640t thermal & 8k drone can accurately detect heat sources within a distance of 2-15 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T can regulate temperature deviations within 3 degrees Celsius.


A New Generation Of Thermal Sensor

The 640x512 sensor provides greater resolution than any camera in its class, enabling pilots to see deep detail in dark environments. The new generation of the Autel Robotics thermal imaging sensor has a resolution of up to 640x512@30 fps. It also comes standard with a 13mm lens, and 16x digital zoom, and is capable of recognizing subjects up to 100 m away.


Maximum Efficiency In All Viewing Conditions

EVO II Dual 640T supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.

Picture-in-Picture Mode (For Enhanced Situational Awareness)

Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision-making.

Capture And Preserve Even The Smallest Of Details

8K Video, Unmatched Clarity

EVO II Dual 640T records in resolutions up to 7680x4320. With 4 times more pixels than 4K (and 16 times more than HD), 8K videos redefine image clarity and depth.

48MP Camera

The 48MP sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded metadata, making the EVO II Dual 640T the ultimate public safety tool.

4x Lossless Zoom

The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.

4K HDR For Greater Dynamic Range

4K HDR offers greater detail in highlights and shadows, providing higher.

360° Obstacle Avoidance

Omnidirectional Obstacle Avoidance With 12 Visual Sensors

 Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Dual 640T can easily build three-dimensional maps and plan paths through complex terrain in real-time.


Dynamic Track 2.0

 The EVO II Dual 640T can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.


Modular Design - Unlimited Expansion

Modular Design - Unlimited expansion

Interchangeable Payloads Offer Expansion Capability - Payload Capacity 2lbs (900g)

Live Video Streaming - LiveDeck enables pilots to share the live aerial video across public or private networks sharing data with command posts, stakeholders, or online viewers.

Open SDK - Create customized services.

38 Minutes Max Flight Time


EVO II Dual 640T Infrared Camera Specifications

Sensor Vanadium oxide uncooled infrared focal plane detector
Lens Viewing angle H33°V26°
Focal length 13mm
Zoom 1-8x
Sensor Resolution 640x512
Pixel Size 12μm
Wavelength Range 8 - 14μm
Temperature Range High gain mode: -20° to +150°
Low gain mode: 0° to +550°
Temperature Measurement Accuracy ±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃
Video Resolution 640x512@30fps
Bit rate 6Mbps
Video Format MOV / MP4 (Support H.264/H.265)
Camera Resolution Infrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720
Photo Mode Single shot
Continuous shooting: 3, 5, 3 by default;
Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, the default is 5S.
Photo Format TIFF+JPG (with irg file)

EVO II Dual 640T visible light camera specifications

Sensor 1/2" CMOS
Effective Pixels: 48 MP
Lens FOV: about 79°
35mm Format Equivalent: 25.6 mm
Aperture: f/1.8
Focus range: 0.5 m to infinity (with auto focus)
Digital Zoom 1 ~ 8x (Max. 4x lossless zoom)
ISO Range Video: 100-6400
Photos: 100-3200
Shutter Speed Electronic Shutter: 8 ~ 1/8000s
Maximum photo size 8000x6000 (4:3)
7680x4320 (16:9)
4000x3000 (4:3)
3840x2160 (16:9)
Still Image Format JPEG / DNG / JPEG+DNG
Photo Modes Single shot;
Continuous shooting (AEB/Burst): 3, 5, 3 by default;
Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S;
Pure night shot: support 4K Jpeg;
HDR: Support 4K Jpeg;
Long exposure: up to 8s;
Image Format JPG (default); DNG
Video Resolution 8K 7680*4320 p25/p24
6K 5760*3240 p30/p25/p24
4K 3840*2160 p60/p50/p48/p30/p25/p24
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
Video Format MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265)
Max Video Bitrate 120Mbps

Gimbal

Gimbal Three-axis stabilization
Mechanical Range Tilt: -135° to +45°
Heading: -100° to +100°
Controllable Range Tilt: -120° to +30°
Heading: -90° to +90°
Maximum Control Speed (Tilt) 300°/s
Angle Jitter ±0.005°

Aircraft

Weight (with propeller and battery) 1237g±0.5g
Wheelbase 397 mm
Maximum Take-off Altitude 6000 m
Max Ascent Speed 5 m/s(automatic flight)
8 m/s(manual control)
Max Descent Speed 4 m/s
Max Horizontal Flight Speed 72 km/h(positioning mode)
Max Tilt Angle 33°(positioning mode)
Max Angular Velocity 120°/s
Max Flight Time 38 minutes
Operating Temperature Range 0℃ to 40℃
Maximum Resistance to Wind 39-46 mph (Level 8)
Operating Frequency 2.400 GHz to 2.4835 GHz
Transmission Power (2.4G) FCC:≤26 dBm
ISED:≤26 dBm
CE:≤20 dBm
RCM:≤20 dBm
SRRC:≤20dBm
Hovering Accuracy When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m
RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GNSS positioning works normally)
Image Position Compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF ​​coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.

Sensing System (Obstacle Avoidance)

Sensing System Omnidirectional Obstacle Sensing
Forward Precision Measurement Range: 0.5-20 m
Detectable Range: 0.5-40m
Effective Sensing Speed: <15m/s
FOV: Horizontal: 60°, Vertical: 80°
Backward Precision Measurement Range: 0.5-16 m
Detectable Range: 0.5-32m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°
Upward Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 60°, Vertical: 50°
Downward Precision Measurement Range: 0.5-11 m
Detectable Range: 0.5-22m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 90°, Vertical: 70°
Sides Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <10m/s
FOV: Horizontal: 60°, Vertical: 50°
Operating Environment Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.)

Remote Controller and Image Transmission

Operating Frequency 2.400 GHz to 2.4835 GHz
Max Transmission Distance FCC:9 km(without interference or obstruction)
CE:5 km(without interference or obstruction)
Real-time Image Transmission Quality 720p@30fps / 1080p@30fps
Maximum Bit Rate of Real-time Image Transmission 40Mbps
Transmission Power (2.4G) FCC:≤26 dBm
ISED:≤26 dBm
CE:≤20 dBm
RCM:≤20 dBm
SRRC:≤20dBm
Display screen 3.26" OLED
854(W) * 480(H)Pixel
Directly preview the video without connecting a mobile phone
Remote Controller Battery 5000mAh
Run Time 3 hours
Charging Time 2 hours fast charge
Supported Mobile Device Size Max Length: 3.30" (84mm)
Max Thickness: 0.51" (13mm)
Supported USB Port Types Lightning, Micro USB (Type-B), USB-C
Working current/voltage 1.7A@3.7V

Intelligent Flight Battery

Capacity 7100 mAh
Voltage 11.55 V
Max Charging Voltage 13.2 V
Battery Type LiPo 3S
Energy 82 Wh
Net Weight 0.81 lbs (365 grams)
Charging Temperature Range 41°F to 104°F (5°C to 40°C)
Storage Temperature and Humidity -10~30℃,65±20%RH
Recommended Storage Temperature 22-28℃
Max Charging Power 93W
Charging Time 90 minutes

Intelligent Flight Battery Manager

Voltage 13.2 V
Charging Temperature Range 5℃ to 45℃

Charger

Input 100-240 V, 50/60 Hz, 1.5A
Output 13.2 V = 5 A 5V=3A 9V=2A 12V=1.5A
Voltage 13.2±0.1V
Rated Power

66W
