2023 Upgrade from MaxiCOM MK808TS - A New Version which can perform comprehensive TPMS services with ease, support OBDII diagnostics and special functions also.Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, Autel MaxiCOM MK808S-TS/MK808Z-TS provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), and BMS (Battery Management System).
For the benefit of consumers, we upgraded the MX808TS & MK808TS to MK808Z-TS at the same cost, but added more features & car models.
1. Fully Enhanced Hardware: the more powerful CPU ROCKCHIP RK3566 Processor, the improved OS Android 11, the larger 4GB+64GB, the faster & more stable 5G Dual Wi-Fi, etc.
2.Wider Vehicle Compatibility.
3.More Features & Faster Software Updating, allowing you to diagnose more new cars on the market earlier than other mechanics.
Alll New Functions are accessible out of box with no need extra Updates：
1.Full TPMS Functions
2.Bi-Directional Control(Active Test)
5.FCA Auto Auth for 2018 & Later FCA cars
6.Compatible with Autel BT506 battery tester/ MV108
What the 2023 Enhanced Version MK808Z-TS Can Do?
1.Newly-Added Bi-Directional Control: More cost-effective than MK808BT+TS608
2.AutoAuth for 2017 & later FCA cars: for Chrysler, J-e-e-p, Dodge, Fiat, etc.
3.Renault Security Gateway Function: unl~ocking Renault’s gateway to perform diagnoses, services, etc.
4.28+ Special Functions: Work with 150 car makes from 1996 to 2023
5.Complete TPMS Functions: 4 ways to program, 3 options to relearn, thousands of TPMS relearn procedures, 99% all brand sensor activating, accurate sensor data reading and advanced TPMS Retrofit function for professional tire shops
6.OE-Level Full-System Diagnosis: Same as Snap-on scanner, enter every corner of on-board systems
7.Wireless BT MaxiVCI Diagnostics: Equipped with MaxiVCI, offering strong single, helping you out from entangled cables
8.Multiple User-Oriented Features: Convenient Auto VIN Scan, Shop Manager, Data Manager, Remote Desk, etc.
Full TPMS Function Same with Autel TS608:
Autel MK808Z-TS has been added ToolKit functions that previous only available on TS608, able to program TPMS by OEM Part No, unlock ECU for Toyata, unlock REDI7002A, awake OEM sensors, check key fob( Disable a lost vehicle key to protect the vehicle from being stolen and add the new key - work only on Asian cars that feature low-grade IMMO system) and more. Autel MaxiCOM MK808Z-TS is able to do TPMS Retrofit, program Autel MX-Sensor, activate / Relearn all known TPMS sensors, TPMS health check and diagnose, one click TPMS sensor live data display, read & clear TPMS DTCs and etc.
Bi-Directional Control & All System Diagnosis:
Autel scanner MaxiCOM MK808Z-TS can access all available systems such as ABS, BCM, Transmission, EPB, TPMS and etc to perform diagnosis: read codes, clear codes, view live data in text, graph & analog, freeze frame data, ECU info and Active Test. Active test is also code bi-directional control, able to output the commands to ECUs and to test actuators to help determine the integrity or functionality of the tested components or modules.
28+ Services & Special Funtions after Maintenance:
With up to 28+ services, you can solve module reset or maintenance with Autel MK808Z-TS at ease, save you a lot of money for repair service in workshop: ABS bleed, Oil reset, SAS reset, Vehicle feul Injector coding, SRS reset, BMS reset, EPB reset and etc. Autel MK808Z-TS can do more than that: able to do initial adaptation, self-learning or some auto detection function after maintenance or reset is done, such as Crankshaft Position Sensor Learn.
Battery Testing & Digital Inspection & FCA Auto Auth:
Autel MaxiCOM MK808Z-TS can work with Autel BT506 to do vehicle battery test, starter test and generator test; Coodinate with Autel MV108 to get close-up HD image or video of small parts or confined area on the 7 inches screen to detenmine if proper fix is needed.
Please know that BT506 and MV108 are not included in the package and require additional purchase.
By applying 3 simple steps: Register, Confirm & Authorize, you can easily use Autel MK808Z-TS to bypass SGW modules on 2018 or later FCA cars to perform diagnose, active test, services function and more
Beat MK808TS in Communication Stability:
Autel MK808Z-TS support both wireless VCI connection & cable connection, the equipped $130 valued VCI Mini can work at 33ft(10m) range and provides more stable and faster data transmission. Dual Frequency Wi-Fi (2.4 & 5.0 GHZ) to ensure more steady internet connection and reduce latency or signal loss during diagnose.
100% Original Autel Scanner with Official Warranty:
This Autel Original MaxiCOM MK808Z-TS is directly from Autel Factory and everything you are concerning is directly backed by Autel headquarters: Lifetime around the clock tech-support, 1 Year warranty, 30 Days Full Refund or New Replacement. For free language switching services, please provide device SN and order ID to us.

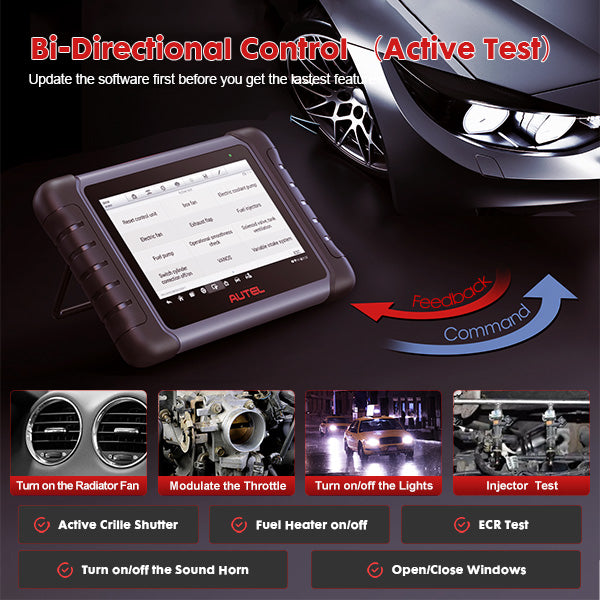

Newly Added Bi-Directional Control---3X Faster Locate Car Issues without Extra Cost
Updated of OBD II scanner MaxiCOM MK808BT and MaxiCheck MX808TS, 2023 updated version MK808Z-TS diagnostic scan tool for all vehicles is not only an affordable obd2 tablet, but also a bidirectional scan tool. It inherits the powerful Bi-directional Control / Active Tests (released on June 1, 2022), which makes MK808Z-TS the most cost-effective Autel diagnostic scanner.
In addition to reading / clearing codes and reading data from all modules, this obd 2 bidirectional scan tool MK808Z TS can also send data to command the vehicle ECUs and monitor the operation of the actuators, even the relays, to track down the problem.
If a part doesn’t work and leads to the failure, it could be a faulty component, relay, wiring, or command. By commanding the component to do active tests, like switch on/off, via this auto scanner MK808Z-TS you can quickly determine whether it’s a wiring, relay, or component issue without removing any parts.
Here are some other examples of active tests, which help you locate faults in the shortest time, saving time on troubleshooting:
- Cycle the a/c clutch on and off;
- Switch the headlights on and off;
- Adjust the window wipers;
- Active tests are often widely used on various parts:
- Inside mirrors, exterior mirrors, adaptive headlamps, steering wheel heating, windows, wash/wipe system, horns, reset starter lock, etc.
-In short, the Autel MaxiCOM MK808Z-TS features the same Active Tests as MK808TS/ MK808BT/ MP808, but runs more faster & more cost-effective.

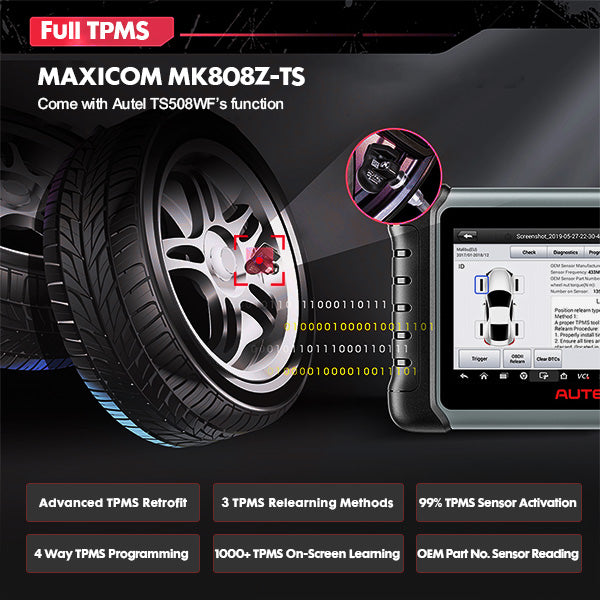

Professional Complete TPMS Functions---Never Let a Flat Tire Wreck Your Ride
Equipped with professional complete TPMS functions, MK808Z-TS escaner automotriz professional can work as both a highly advanced car scanner and a professional TPMS tool ‒ Enough to meet the needs of the professional tire shops. As the great combo of MaxiTPMS TS508/TS601/TS608, TPMS programming & relearn tool MK808Z TS can perform every aspect of TPMS service: all-known sensors activation; view sensors data, TPMS diagnostics; 4 ways to program Autel MX-Sensor programming; thousands of tpms relearn procedures and advanced TPMS retrofit, solving 99% of TPMS problems in the market.
- Autel MX-Sensor Programming
Replace the Broken TPMS Sensors, Fast & Easily: Wirelessly program the Autel MX-sensors (315/433 MHz) to replace the broken TPMS tire sensors with low batteries or other problems. (*Only Autel MX-sensors can be programmed by MK808Z-TS automotive tool ) 4 ways to program TPMS Sensors: Copy by Activation, Copy by OBD, Copy by Input, and Auto Create.
- 99% TPMS Sensor Relearn
Help Newly Replaced TPMS Sensors Work Properly: Relearn TPMS sensors to the vehicle’s ECU after changing or rotating tires, or installing new sensors to ensure if the information stored in ECU matches perfectly with the equipped TPMS Sensor ID and location. 3 ways to relearn TPMS sensors: Stationary Relearn, Automatic Relearn, and OBD Relearn.
- Advanced TPMS Diagnostics
Check the TPMS Module Status: Read/Clear Trouble Codes from TPMS, Read Live Data to check the module status, Turn off the error light.
- All-brand Sensor Activation
Trigger 99% of TPMS Sensors Wirelessly: TPMS tool MK808Z-TS can activate 99% of TPMS sensors (315/433MHz), including the OE sensors and other sensors in the market.
- TPMS Sensor Data Reading
Check the TPMS Sensor Status Quickly: Read the sensor ID, pressure, temperature, battery condition, etc., to help you quickly pinpoint the issue.
- TPMS by OEM Part No.
An efficient method to quickly and accurately determine the current vehicle’s model, year and frequency info., avoiding TPMS matching failure caused by incorrect selection.
OE-level TPMS Retrofit---Allow You to Enjoy No-risk Driving
TPMS retrofit, which can help vehicles without factory-fitted OEM tire pressure module or sensors build everything from scratch, is a highly advanced function that the other special tools can only dream of! (*Only available for the low configuration car models whose high-end models are installed direct TPMS by default.) Compatible with BMW, Benz, etc.
- Upgrade the Low-Level Indirect TPMS to the High-Level Direct TPMS
This Autel TPMS relearn tool MK808Z-TS automotive scanner diagnostic tool can retrofit your car with an OEM tire pressure module, and then program & relearn the sensors to the car.
- How to Perform the TPMS Retrofit Functions?
Here are the specific steps for your reference:
Step 1: Back up the original vehicle data;
Step 2: Code the Autel TPMS module;
Step 3: Install the Autel TPMS module on the vehicle following the instruction;
Step 4: Program the Autel TPMS sensors (Note: For the OE tire sensors, this step can be skipped);
Step 5: Activate the Autel TPMS sensors or OE sensors;
Step 6: Relearn the sensors with on-board TPMS module;
*Once you finish the above steps and sit back to the seat, you will surprisingly find out the pressure of each tire has been shown on the dashboard.
28+ Special Functions---Be Caring for Your Car & Keep It Performing Flawlessly on the Road
Have you ever encountered the following issues before?
1.Limited Vehicle Compatibility?
2.Limited Special/Maintenance Services?
3.Fail to Support New Released Features & New Car Models?
Take it easy! All the above problems can be perfectly solved by Autel MaxiCOM MK808Z-TS professional mechanic tool, which features 28+ hot services for daily car maintenance/repairs, covering 99% global vehicles in the repair shops.
- 28+ Service Functions:
Oil Reset, EPB Reset, TPMS Reset, ABS Bleeding, IMMO (basic), BMS Reset, Throttle Matching, Injector Coding, SAS Calibration, Suspension Calibration, Trans Adaption, Airbag Reset, ABS & SRS, WIN DR Roof, Seats Calibration, Language Change, Headlamp Matching, CHG Tire Size, TEC Learn, Cylinder, Turbocharging, Clutch, A/F Setting… Constant Updating for More Functions.
- AUTOAUTH for FCA SGW Access
The Autel OBD2 scanner MK808Z-TS supports AUTOAUTH for FCA SGW access, allowing you to clear codes, do bi-directional control (active tests), and perform special functions for Chrysler FCA models after 2018 without the need for a bypass cable. *AutoAuth account needs to be purchased by yourself. Compatible with Fiat, Chrysler, Alfa Romeo, Dodge, etc. (From 2018-2023).
- Renault Security Gateway Function
Renault Security Gateway Function is used for unlocking Renault’s gateway to perform service functions, active tests, coding, etc. without the need for a dongle or PC. With this feature, the car scan tool MK808Z-TS allows you to pay to perform those functions via one-click on these models (after 2019), such as CLIO V, CAPTUR II, CAPTUR II CN, MEGANE IV ph2, ESPACE V ph2, TALISMAN/SM6 ph2, NEW ZOE, ARKANA CN, XM3/NEW ARKANA, NEW SANDERO/LOGAN, etc.

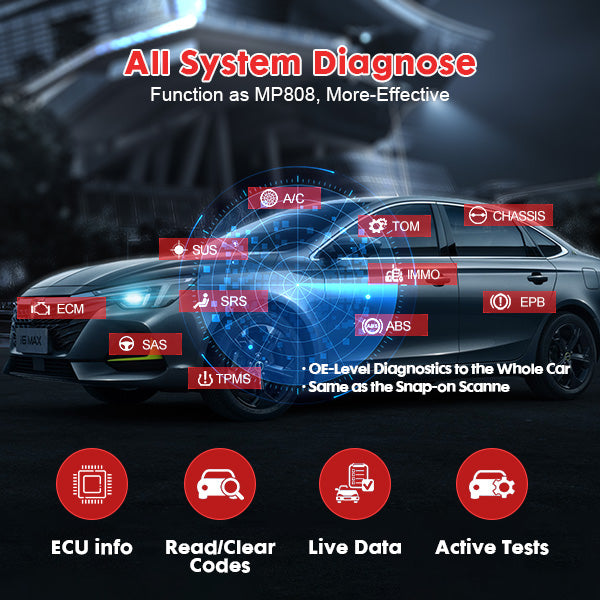

Dealer-Level Diagnostics: Fast, In-Depth, All-Around Diagnostics
Same as the OEM scanner, Autel full-system diagnostic tool MaxiCOM MK808Z-TS works well on 150+ car makes and models worldwide (1996-2023) to read/ clear codes, read ECU info., view Live Data, do active tests, and perform special functions for all available on-board systems, allowing you to accurately repair cars in the shortest time. This Autel comprehensive diagnostic tool can
- Read ECU Information of the control units including unit type, version numbers, etc.
- Read / Clear DTCs to locate problems and clear the codes after certain repairs.
- View Live Data of each parameter item in various modes, such as text, waveform, or combination (4 in 1 data stream).
- Active Test / Bi-directional Control to accurately figure out whether a specific system, component, or subsystem in certain parts goes well or not.
- Special Functions to do various daily automotive maintenance functions on certain systems.
Additionally, if you want to diagnose the whole car, including battery, steering, suspension, audio, or headlamp system…Then you will find the full-system diagnostic tool – Autel MaxiCOM MK808Z-TS car computer code reader to be a perfect choice since it will scan all available electronic systems of cars and troubleshoot the issue in minutes, such as:
- Engine, Auto Transmission, Anti-lock Brake System, Electronic Parking Brake, Battery Manage System, Tire Pressure Monitoring System, Supplemental Restraint System, Immobilizer, Suspension, Cruise Control System, Steering Angle System, Air Conditioning System, Audio System, Body System, Gateway, etc.
Perfect Choice for Global Mechanics/DIY Users:
- Autel MaxiCOM MK808Z-TS scanner is the PERFECT CHOICE for the technician, advanced DIYers, garages, car dealers, used car dealers, auto repair shops, automotive engineers, diagnostic tech, truck men, automobile tech, home mechanics, DIY beginners, automotive students, backyard mechanics, retired mechanics, weekend DIYers, and individuals.
Autel MK808Z-TS: 2023 Practical Functions Deserves to Explore !

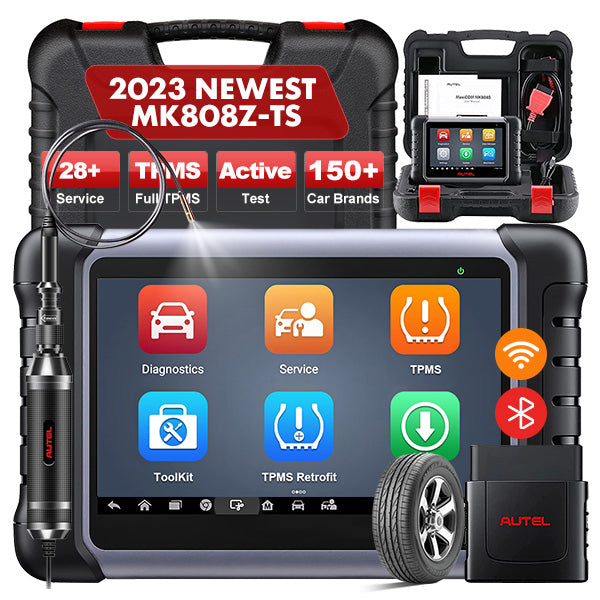

Digital Inspection: Work with MV108
The Digital Inspection application configures the MaxiSys Diagnostics Device to operate as a digital video scope by simply connecting the tablet to a Digital Inspection Camera. This function allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
Special Function :
Initial adaptation, self-learning or some auto detection function with many procedures that the vehicle is performed after maintenance or reset is done or some related component in electronic control system is replaced, such as Crankshaft Position Sensor Learn
Battery Testing:Work with Autel BT506
Autel MaxiCOM Ultra Lite can work with Autel BT506 battery tester to In Vehicle test and Out of Vehicle test function. In-vehicle Test is used for testing batteries that are installed in a vehicle, includes battery test, starter test, and generator test. These tests help determine the health status of the battery, the starter, and the generator, respectively. Out-vehicle test is used to test the condition of batteries that are not connected to a vehicle. This function aims to check the health status of the battery only.
TPMS Programming : Work with Autel Mx-sensors
Autel MaxiCOM MK808Z-TS is able to programs new MX-Sensor to replace OEM sensors
● Android 11
● US No-IP limited
● 150 Car Makes Supported
● Newly Relesed Bi-directional Control Funtion
● Advanced TPMS Retrofit
● FCA & Renault SGW
Cortex-A55 quad-core processor (1.8GHz)
4GB RAM & 64GB On-board Memory
7-inch LCD capacitive touchscreen with 1024x600 resolution
● USB 2.0，Mini USB 2.0
● Wireless BT V2.1+EDR
● HDMI Type A
● SD Card (Support up to 64GB)
Light sensor for brightness auto adjust
Power and Battery
3.7 V/5000mAh lithium-polymer battery
Charges via 5 VDC power supply
5 V/1.5 A
0 to 50°C (32 to 122°F)
-20 to 60°C (-4 to 140°F)
270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
885g (2.31 lb.)
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J100%0 VPW, SAE-J100%0PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
