The Autel MaxiCOM Ultra Lite is a cost-effective alternative to the MaxiCOM Ultra. Its 8-core processor and large screen size ensure smooth diagnostics every time. The Intelligent Diagnostics feature provides access to comprehensive fault code analysis data for easier diagnosis and repair. With 40+ maintenance and reset services and a Topology map that displays the entire system, it allows for quick access to fault modules and improved working efficiency. It also offers ECU coding and programming capabilities for specific BMW and Benz models, as well as advanced ECU coding for most regular cars, enhancing vehicle performance. Overall, this scan tool provides a range of features that can improve both efficiency and performance.
Features
Intelligent diagnostic tool, same as Autel MaxiSys Ultra scannerÂ
Autel Ultra lite adopts advanced intelligent diagnosis software to simply diagnostics process and accelerates quintuple diagnostics. Utilized OE-TSB match the original fault codes, DTC Analysis provides wrong code solutions, Repair Assist offers guidance procedures, Repair Tips and Relevant Cases gives guidance for beginners, according to the priority of fault codes, quickly troubleshoot the vehicle codes.
Multi-languages, No IP Restriction

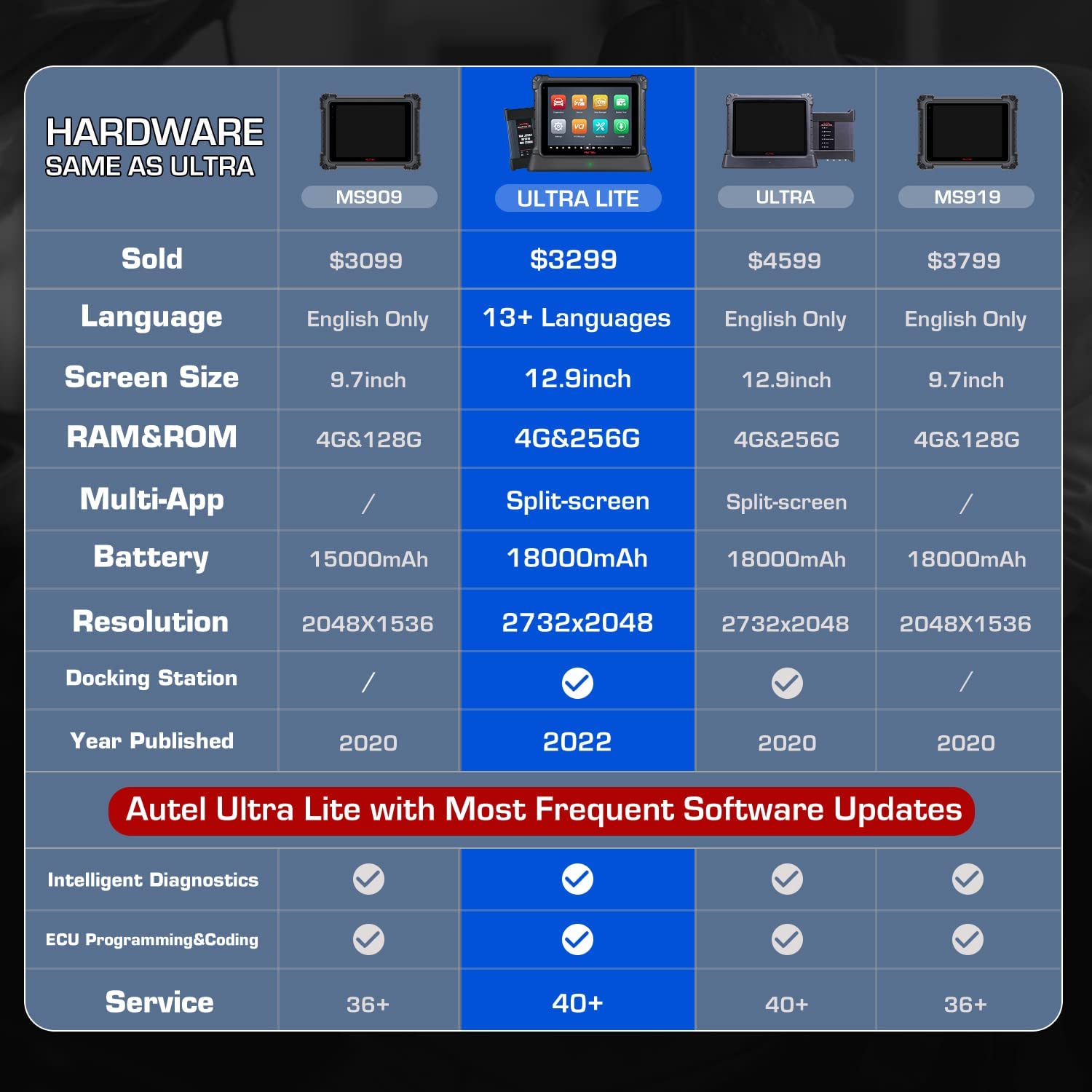

Autel MaxiCOM Ultra Lite has identical hardware as Autel Ultra while cutting your budget in half. Compared with Autel Ultra, MS919, MS909, Autel Ultra Lite has great advantages:
âś… 2-year Free software update
âś… Multi-languages supports
✅ Top-hardware and advanced software for fastest diagnosis: Exynos 8895 octa-core OS, Android 7.0, 4G&128G, 12.9’’ ultra-large TFT-LCD with Multi-app navigation etc.
40+ Services, Active Test

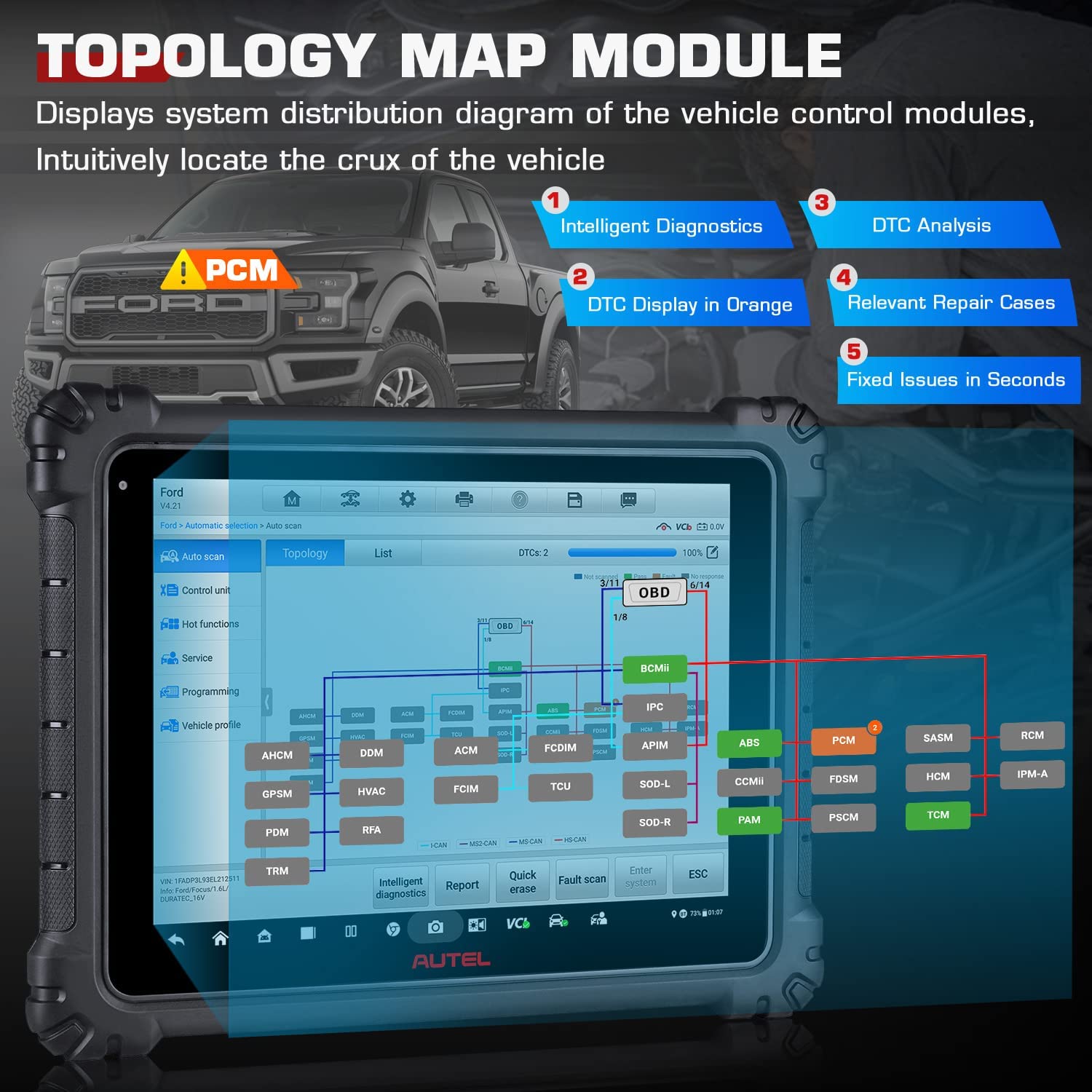

Topology Mapping 2.0 & Demonstration Functions
Dynamic topology module mapping sorts out the relationship between various systems at a glance. Take BMW for example, click “diagnosis”-“topology”-”fault scan” in sequence, you can monitor system scanning process clearly. Ultra Lite has added Preview function: Using "Demonstration" APP, you can pre-select vehicles, simulate maintenance process, deduce repair sequence in advance. Even novice can easily start repair with this feature.
ECU Programming & ECU Online Coding
Autel Car diagnostics scan tool MaxiCOM Ultra Lite has ECU programming & coding on Benz&BMW. It enables replace existing software/ firmware, reprogram control modules after replacement to settle fuel efficiency/ power loss/ durability issues. ECU online coding allows you match/ code newly replaced ECU, refresh hidden functions, customize parameter values for more advanced features. Note: ECU Programming is ONLY available on Benz & BMW.
Multilingual Support, No IP restriction, 99% Vehicle coverage
Supports 13+ languages, others intelligent scanner only in English. Without IP restriction, you can get it to everywhere. 99% vehicles compatibility is a good choice for repair workshops, garages, mechanics. 30 Days No-Reason Return & Replacement Policy, 1 Year Warranty, 7/24 Kind Service will protect your rights.
Tesla, Mclaren Coverage, Add-on Compatibility
Autel Ultra Lite comes with J2534(value $1099) to comfort new Protocols: DoIP/CAN FD, D-PDU/RP1210 bus Protocol, expanding vehicle coverage to 2022 new cars, even including Tesla, McLaren. Autel Ultra Lite add-on compatibility to increase usability: Endoscope function (need MV108), Oscilloscope function (need MP408), Battery Test (need BT506), Remote Expert, Autel Cloud Report, VAG Guided Function, etc. Warmly note: MV108/ BT506 are not included.
New Features:Â FCA AUTO AUTH, BATTERY TEST, WIFI INSTANT PRINT
Updating to the latest software version, Autel Ultra lite can bypass security gateway directly, connect 2017 & later FCA cars (Chrysler, Dodge, Jeep, Alfa Romeo, Fiat) and deploy complete intelligent diagnostics, services, special functions. Ultra Lite supports Battery Test (work with BT506); VAG Guided Functions for VW, Audi, Seat, Skoda. With WIFI printing, Ultra Lite can print reports directly from any page even without PC.
DOIP/ CAN FD PROTOCOL, TESLA/ MCLAREN COVERAGE, FCA AUTO AUTH
Autel MaxiCOM Ultra Lite comes with J2534 (value $1099) to comfort Do IP/ CAN FD bus Protocol, expanding vehicle coverage to 2022, even including Tesla, McLaren. Autel MaxiCOM Ultra lite can bypass security gateway, directly connect 2017 & later FCA cars (Chrysler, Dodge, Jeep, Alfa Romeo, Fiat) and deploy complete intelligent diagnostics, services, special functions. Note: FCA Auto Auth only can be used in US, Canada, Mexico.
Superior Hardware, Vehicle Coverage, and Language Support - Designed for Professional Shops
Hardware: The Ultra Lite boasts hardware that is almost identical to Autel's top-of-the-line Ultra, along with a more advanced operating system, Android 7.0. Its CPU (Exynos8895), RAM (4G), ROM (256G), battery (18000mAh), screen size (12.9inch), screen resolution (2732*2048), Wi-Fi (2.4 & 5GHz), and camera (16M+5M) are all comparable to the Ultra.
- 13+ Languages: The scanner supports over 13 languages, including English, German, Spanish, French, Traditional Chinese, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, Swedish, and more. Contact us if you need assistance changing your language settings or inquire about additional languages supported.
- Wide Vehicle Coverage: Our extensive research and testing have led us to include over 80 manufacturers and 140 models in our vehicle coverage database. This includes popular brands such as Ford, GM, Chrysler, Toyota, Honda, Hyundai, Mazda, Lexus, Volkswagen, Audi, Volvo, Fiat, Porsche, Renault, Mercedes-Benz, BMW, Subaru, Acura, and more. With the MaxiFlash VCI and FCA SGW, we continue to expand the Ultra Lite's capabilities by testing more models and providing as many special features as possible.
If you're unsure whether your specific make and model is covered, please confirm with us. Additionally, the MSOBD2 kit includes OE-compliant adapters for specific vehicles produced between 1996 and 2002 without the standard OBD2 pin configuration, further extending vehicle coverage.
Specifictions
Model | Autel MaxiCOM Ultra Lite |
Operating System: | Android 7.0 |
Processor: | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
Memory: | 4GB RAM 256GB On-board Memory |
Display: | 12.9 inch TFT-LCD with 2732 x 2048 resolution capacitive touch screen |
Connectivity: | WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB) |
Camera | Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel |
Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
Audio Input/Output | Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack |
Power and Battery | 18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
Input Voltage | 12V/3A Adapter |
Operating Temp.: | 0 to 50°C (32 to 122°F) |
Storage Temp | -20 to 60°C (-4 to 140°F) |
Dimensions (W x H x D) | 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34") |
Weight | 2.18kg (4.81 lb.) |
Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20),NN TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |

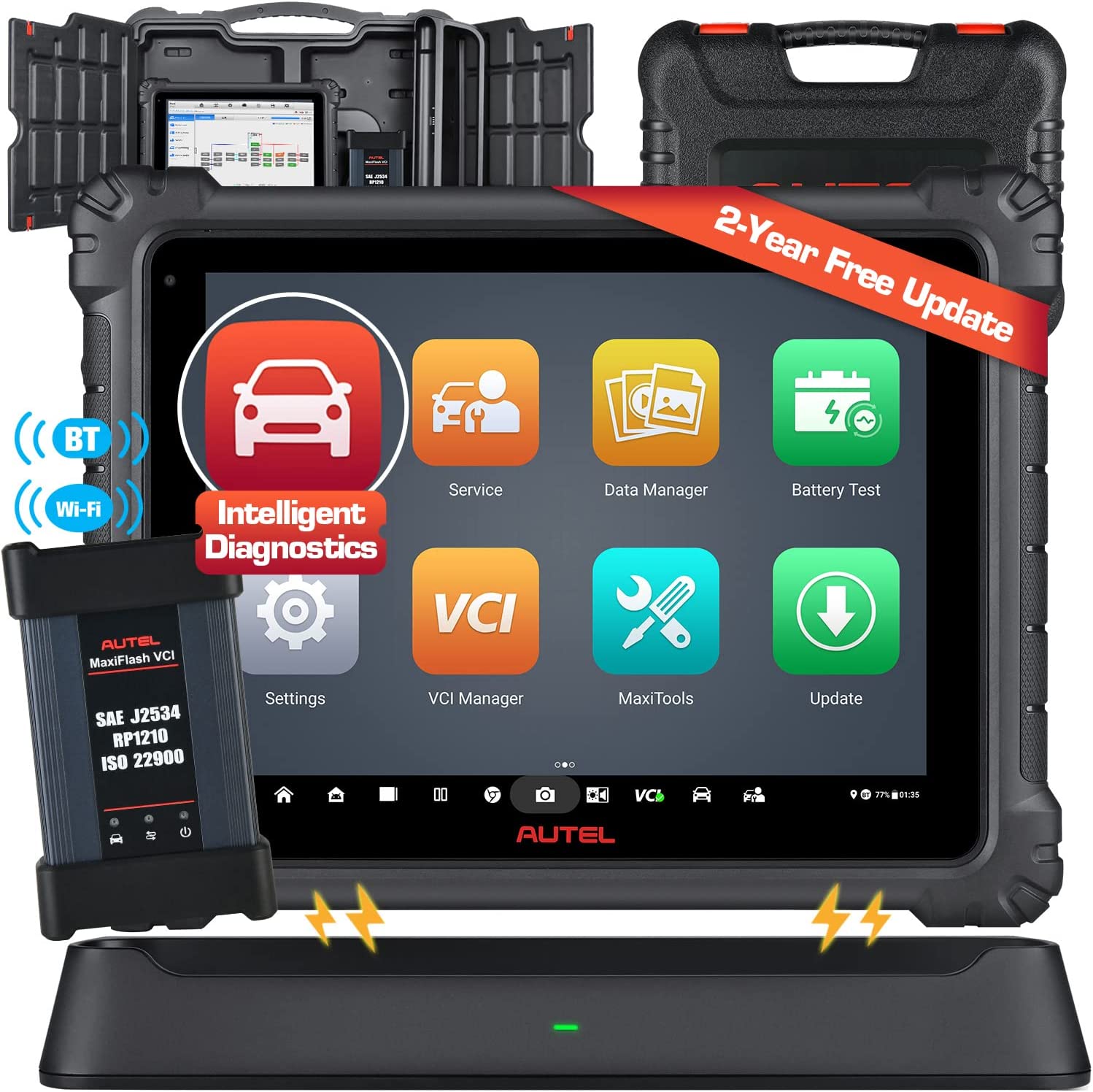

The Packing List Of Autel Ultra Lite Scanner
- MaxiCOM Ultra Lite Main Unit
- MaxiFlash VCM
- Docking Station
- Main Cable V2.0
- USB 2.0 Cable V2
- AC/DC Adapter(12V)
- Cigarette Lighter
- 2 PCS*Light Fuse (6x30mm )
- Clipper Cable
- 4 PCS*Scope Test LeadÂ
- 2 PCS*Multimeter Test LeadÂ
- 2 PCS*Secondary Ignition PickupÂ
- 2 PCS*Attenuator 20:1Â
- 4x6 PCS*Breakout LeadÂ
- 1x2 PCS*Multimeter ProbeÂ
- 2x2 PCS*Flexible Back-pinning Probe
- 1x5 PCS*Back-pinning Probe - Red/Green/Blue/Yellow/BlackÂ
- 2 PCS*Back-pinning Probe ScrewÂ
- 20 PCS*Back-pinning Probe Replacement NeedleÂ
- 2x2 PCS*Small Crocodile ClipÂ
- 1x2 PCS*Large Dolphin ClipÂ
- Quick Reference Guide
- Packing List
- Soft Cloth
- Tool Box (177 x 102.5 x 23.5 mm)
- Carrying Case (687 x 170 x 470 mm)
