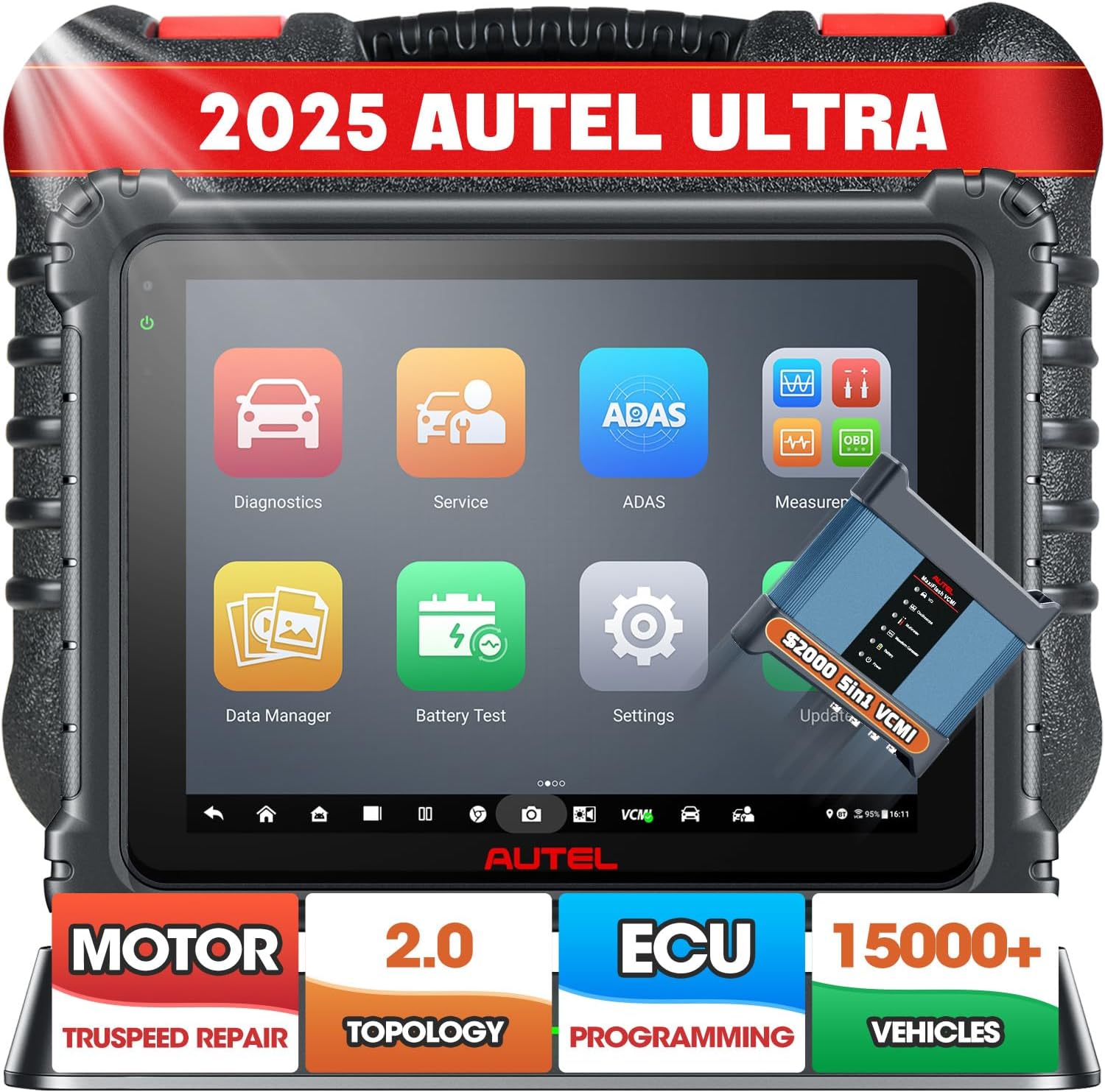

Autel MaxiSys Ultra Scanner as the most popular diagnostic scan tool in 2023, MaxiSys Ultra is updated from Autel MK908P / MS908P / Elite / MS909 / MS919. Combined with new 5-in-1 VCMI, 3 new diagnostic protocols, 36+ service services, 10+ high-end functions, and top-level hardware configuration, 99.99% vehicle coverage, this MaxiSys Ultra scanner is the best investment for large auto workshops.
It features a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

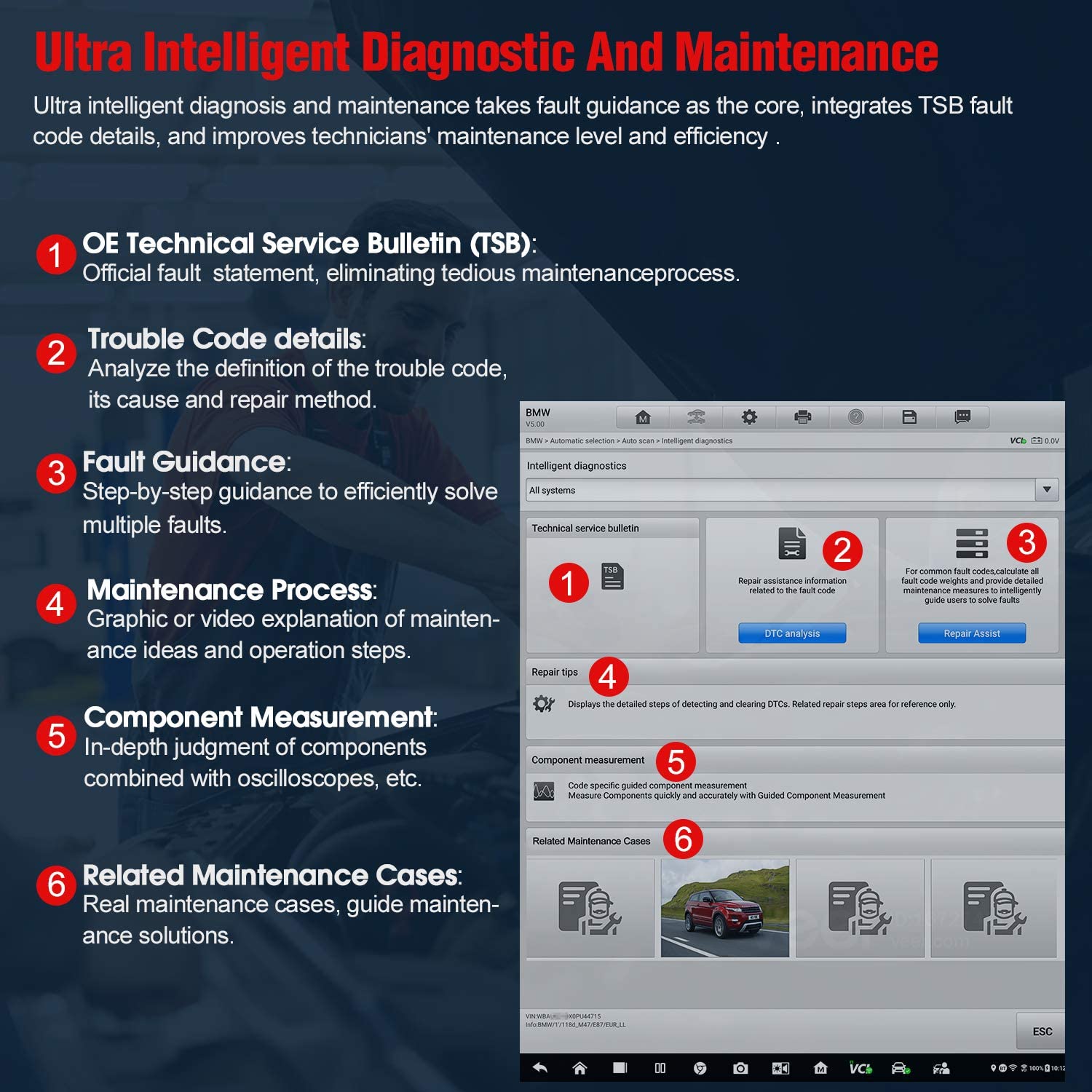

AUTEL ULTRA - TOP INTELLIGENT DIAGNOSTIC: Autel MaxiSys Ultra diagnostic scan tool is the first intelligent one in industry. It takes smart diagnosis as the core, integrated OE Technical Service Bulletin, step-by-step repair tips, DTC Analysis, Component Measurement, Relevant Cases to improve diagnosis and repair efficiency to the greatest extent. Enhanced with topology mapping, technicians repair efficiency is improved at least by 90%, it's the best choice for large car workshops.

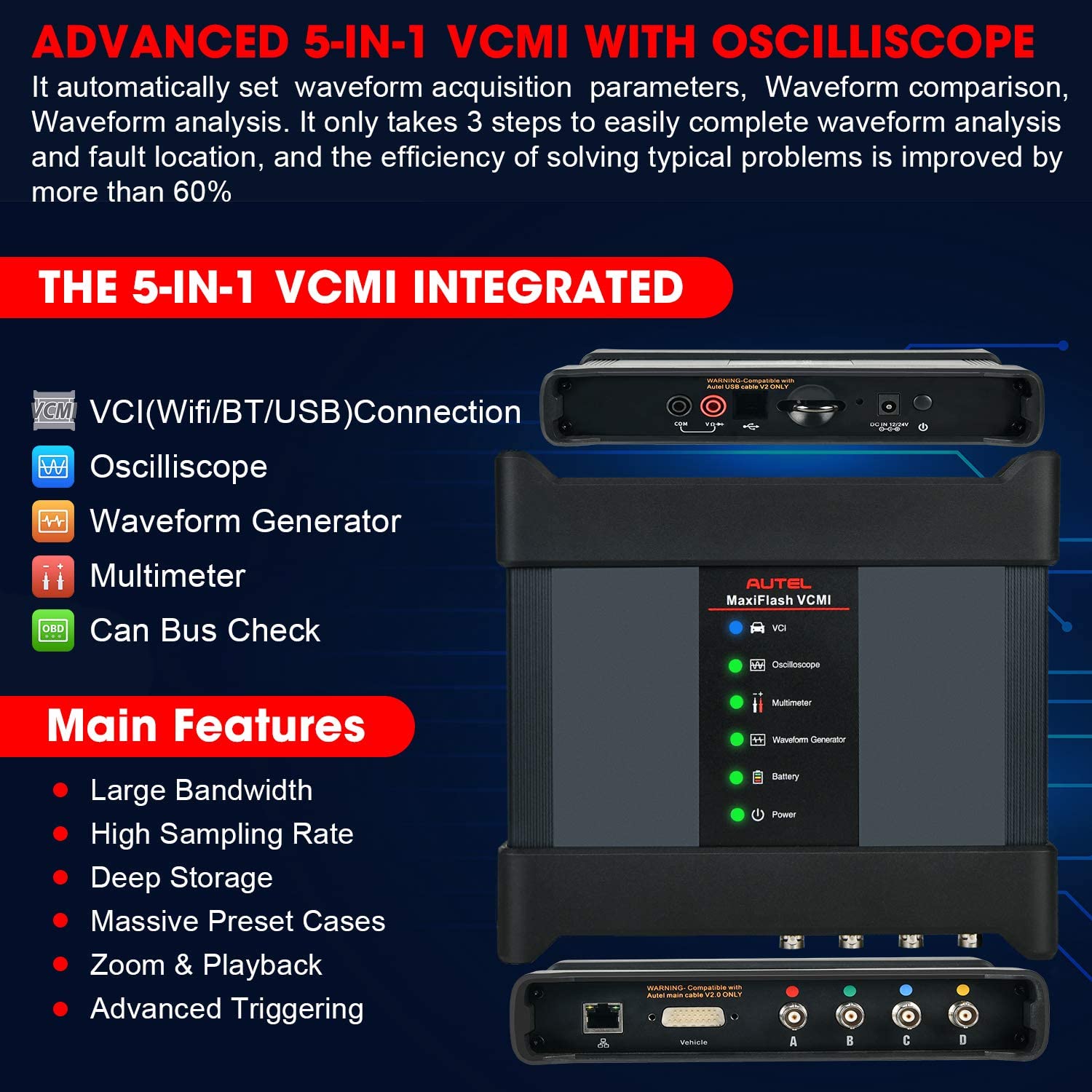

5-IN-1 VCMI, VALUED $2000+ HIGH-END FUNCTION: Different from traditional scan tools, the intelligent diagnostic scan tool Autel Ultra is equipped with an advanced 5-in-1 VCMI combining VCI, oscilloscope, waveform generator, multimeter, and OBD2 CAN BUS Check, it can perform super precise and most overall diagnostic and services on 99% vehicles on the market, Autel Ultra gets you everything in need, it's the top 1 solution provider for large car repair business.
ECU PROGRAMMING & ECU CODING: Professional automotive scan tool Autel MaxiSys Ultra enables enhanced ECU programming on specific BMW and Benz. It can finish program/ rewrite/ code/ match new ECU after new module replacement. Besides the ECU Programming, it also allows for advanced ECU Coding on most of regular cars to unfold hidden features and activate high-end functions to improve vehicle performance. ECU Programming and Coding is not universal, please send VIN to check before order.
BI-DIRECTIONAL + 40 SERVICES: This TOP car diagnostic scanner Autel Maxisys Ultra supports the most comprehensive services on the widest vehicles. Services include Oil Reset, EPB Reset, SAS Calibration, DPF Regen, Battery Reset, Throttle Reset, ABS Bleed, Injector Coding, Power Balance, Key Coding, Suspension Calibration, EGR, VGT Turbo Calibration, Transmission, Headlamps, Window Door Roof etc. Together with bi-directional control, Autel Ultra is the wisest investment for your car workshop.
UNMATCHED COVERAGE, WORKS WITH OE TOOLS: Compared with other competitors on the market, Top Intelligent Scanner Autel Ultra not only supports J2534 diagnostic standard, but also exclusively supports DPDU/ RP1210 and CAN FD/ DoIP protocols, which makes it compatible with oe factory tools to peform further services and programmings. Eg: it supports OE diagnostic tools for Land Rover, Jaguar, Volvo, Toyota, GM, Honda, Nissan, BMW, BENZ, VW, Hyundai, Kia, Mazda, Mitsubishi, Chrysler, etc. Autel MaxiSys MS906 Pro is in hot sale.

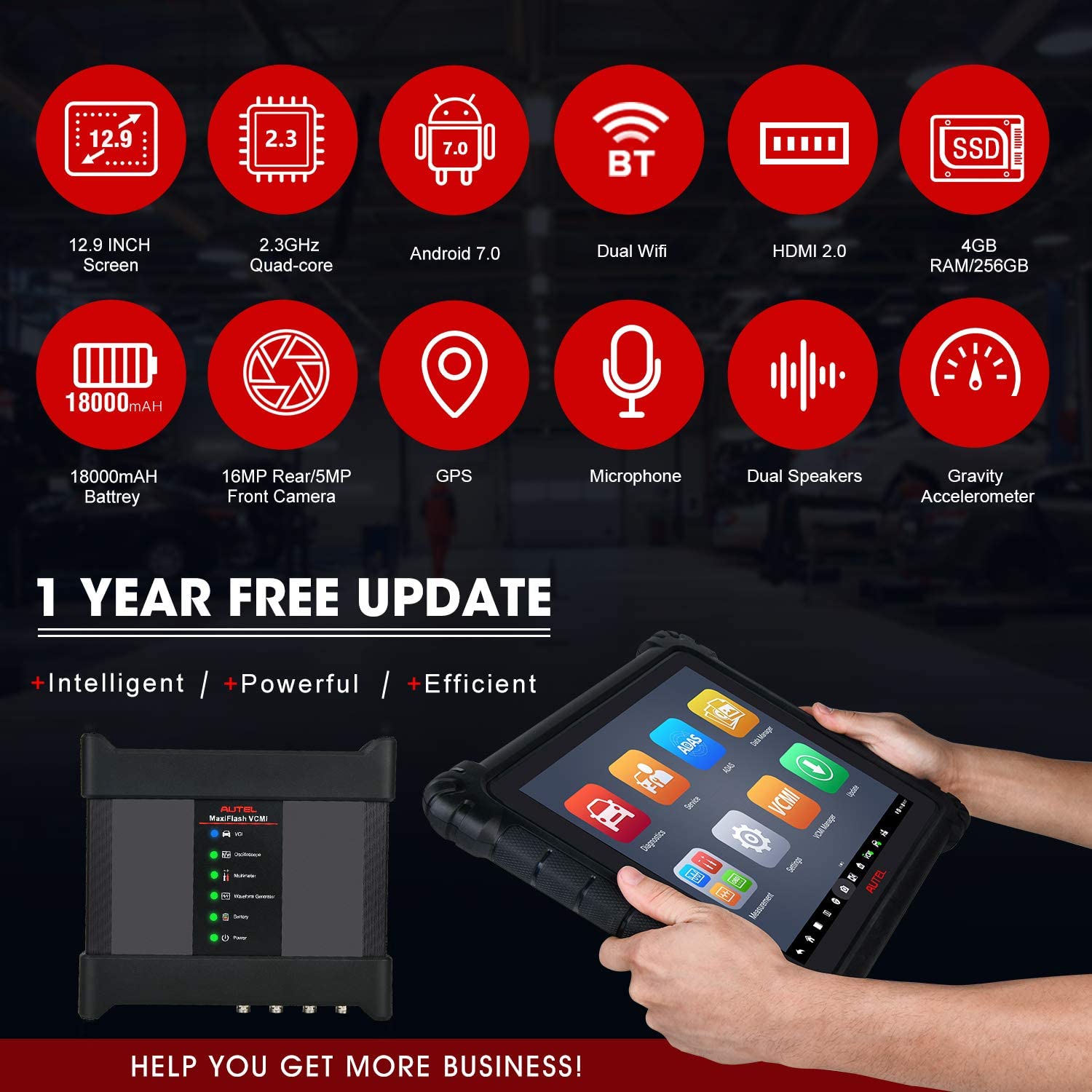

TOP HARDWARE, UPGRADED OF MAXISYS MS919/ MS909: Android 7.0 OS, Sam-sung octa-core processor, 4GB RAM & 256GB memory, 12.9’’ 2732x2048 TFT-LCD touch screen, 5M front & 16M rear cameras, 18000mAh battery, Autel Scan Tool Maxisys Ultra backed by the solid hardware provides you a revolutionary apt and efficient diagnostic experience. And as the top rank product, Maxisys Ultra enjoys the first to update whenever there are any new functions revealed, win over your competitors from start line.
FCA AUTOAUTH ACCESS& INSTANT PRINT VIA WIFI & CLOUD REPORT MANAGEMENT: You can utilize the Autel Ultra on 2018 & later FCA cars (Chrysler, Dodge, Jeep, Alfa Romeo, Fiat) to perform intelligent diagnostics, services, active tests and etc. Autel Maxisys Ultra supports to print reports directly from any page, click the "Print" and get the report right away. Autel Ultra also allows for uploading diagnostic reports to Autel Cloud for easliy sharing via QR Code/ email/ text message.
1 YEAR FREE UPDATES, 1 YEAR QUALITY WARRANTY, US MARKET SOLUTION: Autel scanner Maxisys Ultra has NO IP restriction, but it's English only. Your purchase with us is risk-free, for it is backed by NEW REPLACEMENT or FULL REFUND policy within 30 Days of purchase, and 1 year warranty. Ultra the smart scanner enjoys 1 year FREE software updates All the mentioned functions are not universally compatible.
|Operating System||Android 7.0|
|Operating System||Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)|
|Memory||4GB RAM & 256GB On-board Memory|
|Display||12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen|
|Connectivity||WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
USB 2.0 (Two USB HOST Type A, one USB mini device)
SD Card (Support up to 256GB)
|Camera||Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel
|Sensors||Gravity Accelerometer, Ambient Light Sensor (ALS)|
3-Band 3.5 mm stereo/standard headset jack
|Power and Battery||
18000mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
|Input Voltage||12V/3A Adapter|
|Operating Temp.||0 to 50°C (32 to 122°F)|
|Storage Temperature||-20 to 60°C (-4 to 140°F)|
|Dimensions (WxHxD)||366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")|
|Weight||2.18kg (4.81 lb.)|
|Protocols||DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)|
The new Topology Module Listing CAN BUS Tree, specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the numbers of systems, the scanned systems, and the scan results at a glance.
- Intuitively display the current module status (includes whether there’s a DTC in a specific module, and the number of DTCs);
- Systematically show the communication structure between the modules;
- Directly display the fault code;
- Clearly view the color coded module status tree by zooming in and out;
- Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.
40+ Maintenance Functions Greatly Improve Work Efficiency
- 40+ Commonly Used Reset Functions for Fast Maintenance or Repairs:
- Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.
- 10+ Advanced Functions for Different Vehicle Models:
- Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.
- Oil Reset: to reset the oil service lamp for the engine oil life system; EPB Reset: to reset the brake pad after replacing the brake pad.
- ABS Bleeding: to perform various bi-directional tests of Anti-lock Braking System;
- Injector Coding: to write the new code to the ECU after replacement of injector.
- Suspension Calibration: to adjust the height of the body; SAS Calibration: to calibrate the steering angle after replacement.
- BMS Reset: to perform a resetting operation on the monitoring unit of the vehicle battery.
The Autel Car Scanner demonstrates its competitiveness in the field of automotive diagnostics compared to other brand car scanners. Here are the advantages of the
Autel Scanner relative to other brands.
Coverage of models and functions: Coverage of models and functions is more than one year ahead of competing products on average, which faroutclasses that of competing products. ln addition, Autel devices exclusively support Volvo gateway unlocking function.
Programming andcoding: Competing products do not support programming and coding.Autel devices support programming for the following makes in Europe and America: Mercedes-Benz, andBMW.Autel devices support programming for over 25 makes in Asia-Pacific, IMEA, South America, and China:Mercedes-Benz, BMW,BMW Briliance, Volkswagen, Shanghai Volkswagen, Audi, FAW-Volkswagen, Skoda, Land'over. Jaguar. Porsche. Benault GM (Chinal. Nissan. nfiniti Subaru. Hvunda Being Hyundai. Kia Yueda kia. GreatWall, GAC Motor, Roewe, MG, Geely, etc.
Intelligent Diagnostics Capabilities: Competing products do not support intelligent diagnostics.Autel devices support lntelligent Diagnostics function for over 20 makes: : Mercedes-Benz, BMW, VolkswaaenGM, Chevrolet, Ford, Chrysler, Dodge, Jeep, Fiat, Alfa Romeo, Toyota, Lexus, Nissan, lnfiniti, Hyundai, Kia, Honda,Acura, Volvo, Subaru
Faster Auto Scan Speed: Auto scan speed of competing products is slower than that of Autel devices by more than 100%.Autel devices support Auto Scan 2.0 with significantly improved diagnostic scan speed for over 20 makes:Mercedes-Benz, BMW, Volkswagen, GM, Ford, Mazda, Chrysler, Fiat, Nissan, Toyota, Hyundai, Kia, Honda, Renault.PSA, Changan, Great Wall, BYD, Chery, Geely, SGMW, Baojun, etc.
Topology: Competing products do not support Topology function.Autel devices support Topology function for over 30 makes: Mercedes-Benz, BMW, Volkswagen, GM, ChevroletFord, Mazda, Chrysler, Dodge, Jeep, Fiat, Alfa Romeo, Nissan, lnfiniti, Toyota, Lexus, Hyundai, Kia, Honda, Acura,Renault, PSA, Land Rover, Jaquar, Volvo , Subaru, Suzuki, Mitsubishi. etc.
In conclusion, the Autel Scanner presents a compelling case for its competitiveness in 2023, thanks to its extensive model and function coverage, programming and coding capabilities, intelligent diagnostics, faster auto scan speed, and the inclusion of the Topology function across various makes and models.
